1 Pair 18 AWG Overall Screen HFFR Jacket RS 485 Cable

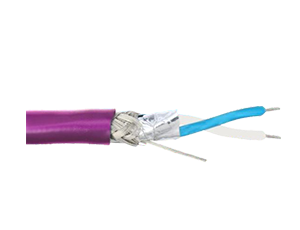

The Overall Screened paired cable from NORDEN is suitable to use as low capacitance RS-485 computer cable. The cable is constructed with foamed PE Insulation, 100% Aluminium Foil-Polyester Tape Overall Shielded with 65% Tinned Copper wire braid Coverage. This Cable is protected by HFFR outer jacket.

RFQ Data Sheet Contact Product Manager

Overview Specifications Ordering Information

Overview

Specifications

Conductor

Stranded Tinned Copper

Shielding

Aluminium Foil - Polyester Tape

Braid Shield

65% Tinned Copper

Outer Jacket

HFFR

Insulation

Foam Polyethylene

Foil Coverage

100%

Drain Wire

Tinned Copper

Jacket Color

Purple

PHYSICAL CHARACTERISTICS

Characteristic	Value
No. of Pair	1
Conductor Size	18 AWG, 7 x 26 mm
Insulation Diameter	3.2 mm
Insulation Thickness	1.0 mm
Drain Wire Size	7 x 0.2 mm
Jacket Thickness	0.8 mm
Jacket Diameter	9.0 mm
Max. Recommended Pulling Tension	350 N
Min. Bending Radius Minor Axis	90 mm
Operating Temperature	-20°C to +75°C

ELECTRICAL CHARACTERISTICS

Characteristic	Unit	Value
Nom. Characteristic Impedance	Ω	120.0
Nom. Capacitance Cond. to Cond.	pF/m	32.0
Max. Conductor DCR @ 25°C	Ω/km	22.7
Nom. Capacitance Cond. to Cond. & Shield	p/m	70
Max. Recommended Current @ 25°C	Amps	5
Max. Operating Voltage UL	V Rms	300

MECHANICAL CHARACTERISTICS

Characteristic	Value
Test Material	HFFR
Before Tensile Strength (Mpa)	≥13.8
Aging Elongation (%)	≥100
After Tensile Strength (Mpa)	≥10.35
Aging Elongation (%)	≥75
Cold Bend (-20±°C x 4 hrs)	No Crack

INSULATION COLOUR CODE

Individual Pair	Colour
Pair 1	White/Blue

Ordering Information

Product	Description	Net Weight (Kg/Km)
78-3501189	1 Pair 18 AWG Overall Screen HFFR Jacket RS-485 Cable	81.0
