110 Patch Cord
110 Patch Cord

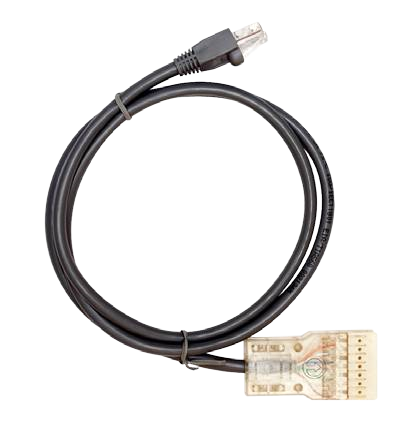

110 Patch Cord incorporates crossover Lead design, which employs crosstalk cancellation techniques to provide superior Near-End Crosstalk (NEXT) performance. These 110 Patch Cords exceed attenuation and NEXT of Category 5 and Category 5e specifications and are available in 1, 2, or 4 pair sizes. 110-110 Patch Cord: The 110 to 110 patch cords contain two 110 connectors and provide reliable connections between 110 termination blocks. They are available in 1,2,3,4 and 5m lengths. 110-RJ45 Patch Cord: The 110 to RJ45 patch cords connect a 110 connector to an 8 position modular jack. These cords are available wired as T568A and T568B and are available in 1,2,3,4 and 5m lengths.
Overview Specifications Ordering Information
Overview
110 Patch Cord incorporates crossover Lead design, which employs crosstalk cancellation techniques to provide superior Near-End Crosstalk (NEXT) performance. These 110 Patch Cords exceed attenuation and NEXT of Category 5 and Category 5e specifications and are available in 1, 2, or 4 pair sizes. 110-110 Patch Cord: The 110 to 110 patch cords contain two 110 connectors and provide reliable connections between 110 termination blocks. They are available in 1,2,3,4 and 5m lengths. 110-RJ45 Patch Cord: The 110 to RJ45 patch cords connect a 110 connector to an 8 position modular jack. These cords are available wired as T568A and T568B and are available in 1,2,3,4 and 5m lengths.Specifications
|
Operating Temperature Range |
-10 °C to +60 °C |
|
Contact material |
Phosphor Bronze with 1.25 µm Silver over 1.9 µm Nickel Plating |
|
Plug Housing Material |
PBT V0 UL94 or ABS or PC |
|
Cable Conductor Material & Diameter |
Bare Copper, 0.20 mm norm. |
|
Insulation Material & Diameter |
PE |
|
Insulation Diameter of conductor |
0.98 mm norm. |
|
Outer Jacket Material |
PVC |
|
Outer Jacket diameter for 1, 2, 4 pair patch cord |
2.6±0.2 mm, 4.2 ±0.2 mm, 5.5±0.2 mm |
|
Jacket Colour |
As per requirement |
Ordering Information
| Part Number | Description | Length |
|
235-10401 |
110 Patch Cord 110 to 110 4P 1m |
1m |
|
235-10402 |
110 Patch Cord 110 to 110 4P 2m |
2m |
|
235-10403 |
110 Patch Cord 110 to 110 4P 3m |
3m |
|
235-10201 |
110 Patch Cord 110 to 110 2P 1m |
1m |
|
235-10202 |
110 Patch Cord 110 to 110 2P 2m |
2m |
|
235-10203 |
110 Patch Cord 110 to 110 2P 3m |
3m |
|
235-10101 |
110 Patch Cord 110 to 110 1P 1m |
1m |
|
235-10102 |
110 Patch Cord 110 to 110 1P 2m |
2m |
|
235-10103 |
110 Patch Cord 110 to 110 1P 3m |
3m |
|
235-20401 |
110 Patch Cord 110 to RJ45 4P 1m |
1m |
|
235-20402 |
110 Patch Cord 110 to RJ45 4P 2m |
2m |
|
235-20403 |
110 Patch Cord 110 to RJ45 4P 3m |
3m |
|
235-20201 |
110 Patch Cord 110 to RJ45 2P 1m |
1m |
|
235-20202 |
110 Patch Cord 110 to RJ45 2P 2m |
2m |
|
235-20203 |
110 Patch Cord 110 to RJ45 2P 3m |
3m |
|
235-20101 |
110 Patch Cord 110 to RJ45 1P 1m |
1m |
|
235-20102 |
110 Patch Cord 110 to RJ45 1P 2m |
2m |
|
235-20103 |
110 Patch Cord 110 to RJ45 1P 3m |
3m |
