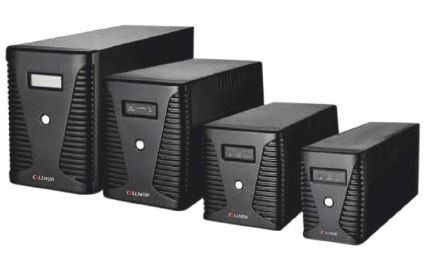

1200VA Line Interactive UPS

1200VA Line Interactive UPS

Nanopower Series UPS is specially designed for Personal Computer with multi -functions. Its light weight, compact design perfect ?ts to the limited working environment. The line of UPS is equipped with one boost and one buck AVR to stabilize input voltage range. It is also built-in with DC start function....

RFQ Data Sheet Contact Product Manager

Overview Specifications Ordering Information

Overview

Nanopower Series UPS is specially designed for Personal Computer with multi -functions. Its light weight, compact design perfect ?ts to the limited working environment. The line of UPS is equipped with one boost and one buck AVR to stabilize input voltage range. It is also built-in with DC start function....

Specifications

FEATURES

  • Line Interactive UPS with simulated sinewave output
  • Excellent microprocessor control guarantees high reliability (Internal self-diagnostic technology)
  • Boost and buck AVR for voltage stabilization(one boost and one buck control)
  • Auto restart while AC is recovering
  • Cold start function
  • Off-mode charging
  • Fast intelligent battery recharge function
  • Offering LED and LCD panels for selections
  • Optional Generator compatible
  • Optional USB/RS232 communication port and
  • RJ11/RJ45 protection




Model CN1200N

Capacity

VA

1200
  Watts 720

Input

Normal input voltage

110/120 Vac or 220/230/240 Vac

Operating Voltage Range

81~145 Vac / 162~290 Vac

Operating Frequency Range

60/50 Hz (auto sensing)

Output

AC Voltage Regulation (Batt. Mode)

±10%

Frequency Range (Batt. Mode)

60/50Hz ±1 Hz

Transfer Time

Typical 2-6ms, 10ms Max.

Waveform (Batt. Mode)

Simulated Sinewave

Battery

Battery Voltage

24Vdc
Battery Type & Number 12 V / 7Ah x 2

Typical Recharge Time

4~6 hours recover to 90% capacity

Indicators

LED Display (LED version)

AC Mode, Battery Mode, Overload, Fault

LCD Display (LCD version)

AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Battery Low

Protection

Full Protection

Short circuit, Overload , Overcharge and over discharge protection

Alarm

Battery Mode

Sounding every 10 seconds
Low Battery Sounding every second
Overload Sounding every 0.5 second
Battery Replacement Alarm Sounding every 2 seconds

Fault

Continuously sounding

Management

Communication Port

USB or RS232(Supports Window ? 2000/2003/XP/Vista/2008, Window ? 7, Linux, Unix, and MAC)

Operating Environment

Humidity

0-90 % RH @ 0- 40°C (non-condensing)

Noise Level

Less than 45dB

Physical

Dimension,

W x D x H (mm)

353x149x162

Net Weight S/H (kg)

Approx. 8.4


Ordering Information

Part Number Description

CN1200N

1200VA Line Interactive UPS
