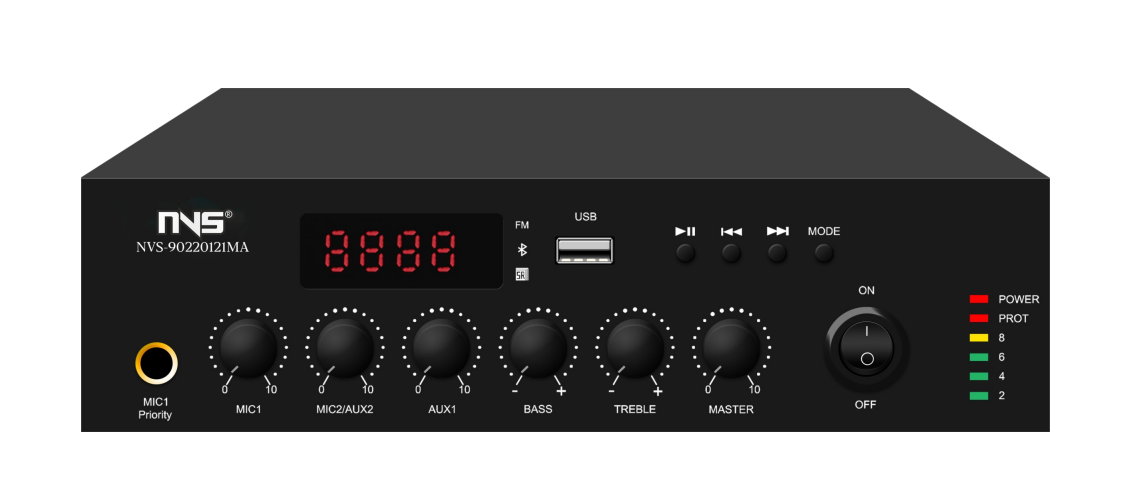

120W MINI DIGITAL MIXER AMPLIFIER WITH USB & BLUETOOTH
NVS-90220121MANVS-90220121MA is a Mini Digital amplifier with USB/FM and Bluetooth. The Amplifier provides, speaker output 70V/100V and 4-16Ω. 3 Aux input, Min1 is 6.3 mm jack in front panel and Mic2 is XLR in rear panel were available. There is Phantom power available for Mic2. Individual volume control for each Mic and Aux, also provide Bass and Treble control. It also has EMC signal input for the emergency situations.
Overview Specifications Ordering Information
Overview
NVS-90220121MA is a Mini Digital amplifier with USB/FM and Bluetooth. The Amplifier provides, speaker output 70V/100V and 4-16Ω. 3 Aux input, Min1 is 6.3 mm jack in front panel and Mic2 is XLR in rear panel were available. There is Phantom power available for Mic2. Individual volume control for each Mic and Aux, also provide Bass and Treble control. It also has EMC signal input for the emergency situations.Specifications
FEATURES
- Built-in Bluetooth, FM, and USB function
- 2 MIC inputs, 2 EMC inputs, 2 line inputs, 1 line output
- Support 100V/70V constant voltage output, and 4 -16Ω constant resistance output
- Can be controlled by the infrared remote controller
- With priority function, the priority is EMC/MIC1>AUX1/AUX2/MIC2
- With master volume control, individual volume control for MIC & LINE, treble and bass volume control
<tr "="">
Model
NVS-90220121MA
| SPECIFICATIONS | ||
| Rated Power | 120W | |
| Output voltage/Impedance | 70V,100V/4-16Ω | |
| MIC1 input sensitivity | 7mV±1mV | |
| MIC2 input sensitivity | 7mV±1mV | |
| AUX1 input sensitivity | 300mV±10% | |
| AUX2 input sensitivity | 300mV±10% | |
| EMC input sensitivity | 350mV±10% | |
| MIC frequency response | 100Hz~8kHz(±3dB) | |
| AUX frequency response | 80Hz~15kHz(±3dB) | |
| Treble adjustment | 10dB (±2) | |
| Bass adjustment | 10dB (±2) | |
| Noise | ≤6mV(4Ω load out) | |
| Distortion | <1% 1kHz | |
| Rated power supply | ~110-240V 50/60Hz | |
| Weight | 3Kg | |
| Dimension(L×W×H) | 198×247×66mm | |
Ordering Information
| Part Number | Description | Standard Quantity |
| NVS-90220121MA | 120W Mini Digital Mixer Amplifier with USB & Bluetooth | 01 |
