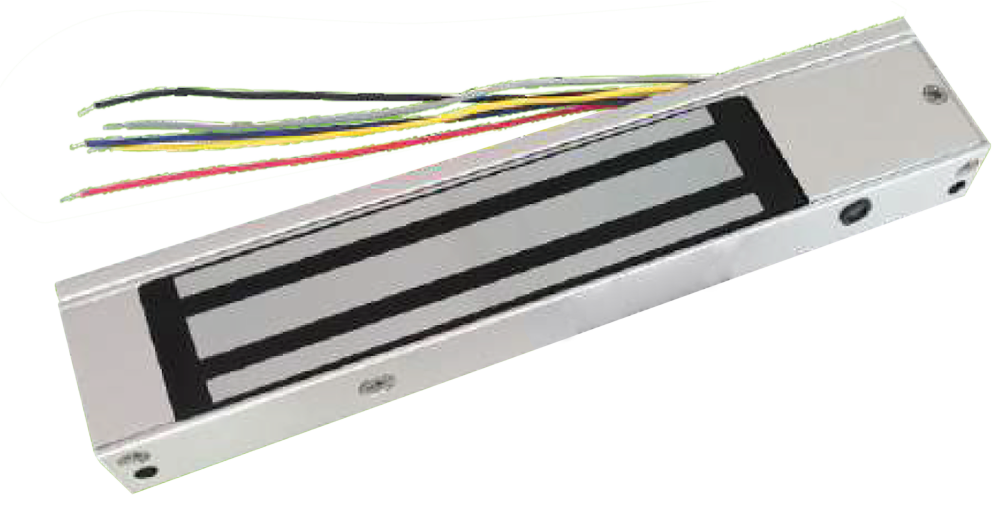

180KG Single door EM lock with 5wires
NAC-6001EMSecnor NAC-6001EM electromagnetic lock with 5 wires has a holding force of 180Kg. It is suitable for wooden door, glass door, metal door, fireproof door etc
Overview Specifications Ordering Information
Overview
Secnor NAC-6001EM electromagnetic lock with 5 wires has a holding force of 180Kg. It is suitable for wooden door, glass door, metal door, fireproof door etcSpecifications
TECHNICAL PARAMETERS
|
Lock Size |
200 x 41.7 x 21.7 (mm) |
|
Armature Plate |
130 x 33 x 10.5 (mm) |
|
Holding |
180KG (350Lbs) |
|
Voltage |
DC12V or DC24V (24V need to customize) |
|
Current Draw |
12V/280mA 24V/150mA |
|
Signal Output |
Pls see EL-350TS |
|
Suitable for |
Wooden door, Glass door, Metal door, Fireproof |
|
Surface Temp |
≤20°C |
|
Operating Temp |
-10°C ~ 55°C |
|
Suitable Humidity |
0~90%(non-condensing) |
|
Finishes for Shell |
Anodized aluminum surface texture processing |
|
Finishes for Magnetic |
Zinc |
|
Finishes for Armature |
Zinc |
|
Weight |
1.2Kg |
|
Standard Packing |
20pcs |
Ordering Information
| Part Number | Description |
|
NAC-6001EM |
180KG Single door EM lock with 5wires |
