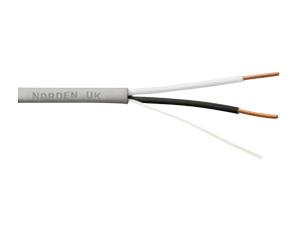

2 Core 14 AWG Unshielded Single Strand Solid Conductor Cable

79-3102142

The Unshielded single strand solid Conductor Cable from NORDEN is suitable to use within Commercial Audio Systems, Control and Instrumentation purpose. The cable is constructed with PE insulation, Nylon Rip Cord and LSZH outer jacket.

RFQ Data Sheet Contact Product Manager

Overview Specifications Ordering Information

Overview

Specifications

Specification

Conductor

Solid Bare Copper

Outer Jacket

LSZH

Rip Cord

Nylon

Insulation

Jacket Color

Grey

PHYSICAL CHARACTERISTICS

Characteristic	Value
No. of Conductor	2
Conductor Size	14 AWG 1.63 mm
Insulation Diameter	2.5 mm
Jacket Thickness	0.55 mm
Jacket Diameter	5.6 mm
Max. Recommended Pulling Tension	422 N
Min. Bending Radius Minor Axis	44 mm
Operating Temperature	-10ºC to +60ºC

ELECTRICAL CHARACTERISTICS

Characteristic	Unit	Value
Nom. Conductor DCR	Ω/km	33.8
Dielectric Strength between Pairs	KV/5min	1.5
Max. Operating Voltage UL	V/min	300

MECHANICAL CHARACTERISTICS

Characteristic	Value
Test Material	LSZH
Before Tensile Strength (Mpa)	≥ 13.8
Aging Elongation (%)	≥ 100
After Tensile Strength (Mpa)	≥ 10.35
Aging Elongation (%)	≥ 75
Cold Bend (-20±°C x 4 hrs)	No Crack

INSULATION COLOUR CODE

Individual Core	Colour
Core 1	White
Core 2	Black

Ordering Information

Part Number	Description
79-3102142	2 Core 14 AWG Unshielded Single Strand Solid Conductor Cable LSZH, 305m
