2MP PTZ DOME CAMERA
2MP PTZ DOME CAMERA

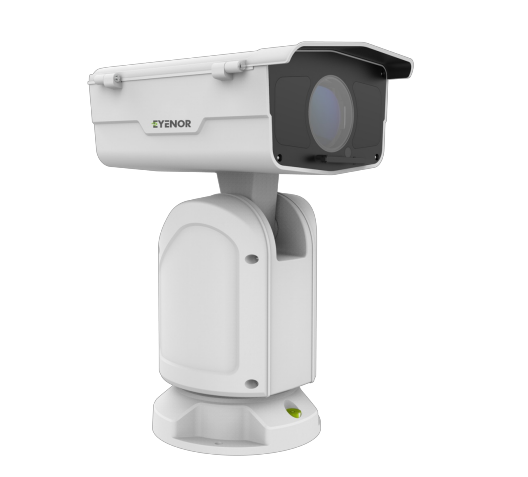

ENC-HHP5Z-400R-132MP 60FPS IR IP H.265 Heavy Duty PTZ System with 44X Optical Zoom, WDR, Micro SD Card Slot, Smart Analytics and 400m IR Support
Overview Specifications Ordering Information
Overview
2MP 60FPS IR IP H.265 Heavy Duty PTZ System with 44X Optical Zoom, WDR, Micro SD Card Slot, Smart Analytics and 400m IR Support
Specifications
|
MODEL |
Model No. |
ENC-HHP5Z-400R-13 |
|
Type |
2MP PTZ DOME CAMERA |
|
|
|
Image Sensor |
1/2.8" CMOS Progressive 2.0 MegaPixel |
| Day / Night | IR Cut Filter with Auto Switch | |
| Lens Type | Motorized Zoom Lens | |
| Focal Length | 5~220 mm Lens | |
| Focus | Auto / Semi Auto / Manual | |
| Iris Type | Auto Iris | |
| Angle of view (H) | 60.6° ~ 1.8° | |
| Angle of view (V) | 35.6° ~ 1.2° | |
| Aperture Range | F1.2 ~ F3.5 | |
| Optical Zoom | 44X | |
| Digital Zoom | 16X | |
| Zoom Speed | <5s | |
| CAMERA | Shutter | 1s to 1/100,000s, Auto / Manual |
|
|
Min. Illumination |
Color: 0.005 lux @ F1.35, B/W: 0 lux with IR |
| AGC | Auto / Manual | |
| Digital Noise Reduction | 3D DNR | |
| S/N Ratio | 56 dB | |
| Defog | Optical & Digital Defog | |
| WDR | 120 dB | |
| Smart IR | Up to 400 m | |
|
Wavelength |
850 nm |
|
| Max. Resolution | 1920×1080 | |
|
VIDEO
|
Video Compression |
H.265+, H.265, H.264, MJPEG |
|
Frame Rate |
Main Stream: 2MP (1920x1080) @ 60fps Sub Stream: 2MP (1920x1080) @ 60fps Third Stream: D1 (720x576) @ 60fps |
|
| Stream Settings | i-Frame, PAL/NTSC, Frame Rate, EIS, SVC | |
|
Video Bit Rate |
128 kbps ~ 16 Mbps |
|
| Bitrate Type | CBR, VBR | |
| Image Settings | Brightness, Saturations, Contrast, Sharpness, 2D/3D Noise Reduction, Image Rotation, Exposure, Smart Illumination | |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto 2 | |
| HLC | Supported | |
|
BLC |
Supported |
|
|
OSD |
Total 8 regions |
|
|
ROI |
Up to 8 regions |
|
| Privacy Mask | Up to 24 regions | |
|
AUDIO |
Audio Compression |
G.711A, G.711U |
|
Audio Bit Rate |
64 kbps |
|
|
Audio I/O |
1/1 |
|
| Two Way Audio | Supported | |
|
Audio Voltage |
1 Input: impedance 35kΩ; amplitude 2V [p-p] 1 output: impedance 600Ω; amplitude 2V [p-p] |
|
|
SMART
|
Behavior Detection |
Intrusion (Perimeter), Crossline (Tripwire), Region Entry / Exit Detection, False Alarm Detection |
| Statistical Analysis | Face Capture, People Counting, Crowd Detection, Audio Detection | |
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |
| Auto Tracking | Supported | |
|
INTERFACE
|
Protocols |
TCP/IP, UDP, IPv4, IPv6, ICMP, IGMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, RTMP, PPPoE, NTP, UPnP, SMTP (SSL/TLS), QoS (DSCP), 802.1x, SNMP, ARP, SSL/TLS |
| Security | User Authentication, HTTPS Encryption, RTSP Authentication, Digest Authentication (RTSP/HTTP/ONVIF), TLS 1.2, WSSE (ONVIF) | |
|
Compatibility |
ONVIF Profile (S, G, T), SDK/API |
|
|
Network |
1 x RJ45 10M/100M/1000M Self Adaptive Ethernet Port |
|
| Alarm Interface | 7 Input / 2 Output | |
| Serial Interface | 1 x RS485 | |
| Video Output | 1xBNC | |
| Edge Storage | Micro SD card slot, up to 256 GB | |
| Network Storage | ANR, NAS(NFS) | |
| Built-in Heater | Supported (Optional) | |
| Cable Interface | Pig Tail | |
| Remote Connection | Up to 32 users | |
| Web Client | EyenorVMS | |
|
PAN & TILT
|
Pan Range |
360°(endless) |
| Pan Speed | Pan Manual Speed: 0.1°/s ~ 140°/s, Pan Preset Speed: 140°/s | |
| Tilt Range | -45° ~ 90° (Auto flip) | |
| Tilt Speed | Tilt Manual Speed: 0.1°/s ~ 50°/s, Tilt Preset Speed: 50°/s | |
| Patrol | 16 patrols, up to 64 presets for each patrol | |
| Number of Preset | 1024 | |
| Patrol Stay Time | 15s ~ 1800s | |
| Home Position | Supported | |
|
GENERAL
|
Power Supply |
24V AC, 20 ~ 60V DC |
|
Max. Power consumption |
103W |
|
| Working Temperature | -40 °C ~ 70 °C | |
| Working Humidity | ≤ 95% RH (non-condensing) | |
| Ingress Protection | IP67 | |
| Vandal Resistant | IK10(Housing) | |
| Surge Protection | TVS6000V | |
| Reset Button | Supported | |
| Dimensions | 280.1×365.9x505.2 mm | |
| Net Weight | 14.1 kg |
