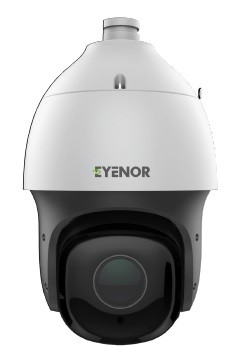

2MP PTZ DOME CAMERA
2MP PTZ DOME CAMERA
ENC-HHP5Z-180R-972MP 60fps Starlight IR IP H.265 PTZ Dome Camera with 25X Optical Zoom, Hi-PoE, MicroSD Card Slot, Smart Analytics, WDR and 180m IR Support
Overview Specifications Ordering Information
Overview
2MP 60fps Starlight IR IP H.265 PTZ Dome Camera with 25X Optical Zoom, Hi-PoE, MicroSD Card Slot, Smart Analytics, WDR and 180m IR Support
Specifications
|
MODEL |
Model No. |
ENC-HHP5Z-180R-97 |
|
Type |
2MP PTZ DOME CAMERA |
|
|
|
Image Sensor |
1/2.8" CMOS Progressive 2.0 MegaPixel |
| Day / Night | IR Cut Filter with Auto Switch | |
| Lens Type | Motorized Zoom Lens | |
| Focal Length | 4.8-120 mm | |
| Iris Type | DC Auto Iris | |
| Angle of view (H) | 58.5° ~ 2.8° | |
| Angle of view (V) | 33.2° ~ 1.5° | |
| Aperture Range | F1.5 ~ F3.8 | |
| Optical Zoom | 25X | |
| Digital Zoom | 16X | |
| Zoom Speed | <4s | |
|
CAMERA |
Shutter |
1s to 1/100,000s |
|
|
Min. Illumination |
Color: 0.001 lux @ F1.5, B/W: 0 lux with IR |
| AGC | Auto/Manual | |
| Digital Noise Reduction | 3D DNR | |
| S/N Ratio | 55dB | |
|
Defog |
Smart Defog |
|
| WDR | 140dB | |
| Smart IR | 180 m (upgradable up to 200 m) | |
|
Laser IR |
N/A |
|
|
Wavelength |
850nm |
|
|
White LEDs |
N/A |
|
| Max. Resolution | 1920×1080 | |
|
VIDEO
|
Video Compression |
H.265+, H.265, H.264, MJPEG |
|
Frame Rate |
Main Stream: (1920x1080, 1280×720, 704×480, 640×480) @ 60fps, (1920x1080, 1280×720, 704×576, 640×480) @ 50fps Sub Stream: (704×480, 704×240, 640×360, 352×240) @ 30fps, (704×576, 704×288, 640×360, 352×288) @ 25fps Third Stream: (1920x1080, 1280×720, 704×480, 704×240, 352×240) @ 30fps, (1920x1080, 1280×720, 704×576, 704×288, 352×288) @ 25fps |
|
| Stream Settings | i-Frame, PAL/NTSC, Frame Rate, EIS, SVC | |
|
Video Bit Rate |
32 kbps ~ 16 Mbps |
|
| Bitrate Type | CBR, VBR | |
| Image Settings | Brightness, Contrast, Saturation, Hue, Sharpness, Rotation/Mirror, Gain, Exposure, Day/Night | |
| White Balance | Auto, Semi Auto, Sunshine, Daylight, Warm Light, Filament, Nature Light, Lock WB, Manual | |
| Corridor Mode | N/A | |
| HLC | Supported | |
|
BLC |
Supported |
|
|
OSD |
Total 5 regions |
|
| OSD Type | Title, Week, Date, Time, Text with different colors and adaptable sizes (16×16, 24×24, 32×32, 48×48, 64×64, 96×96), Image overlay | |
|
ROI |
Up to 7 regions |
|
| Privacy Mask | Up to 24 regions | |
|
Heatmap |
Supported |
|
|
AUDIO |
Audio Compression |
G.711A, G.711U, ADPCM_D, AAC_LC |
|
Audio Bit Rate |
8 kbps ~ 48 kbps |
|
|
Audio I/O |
1/1 |
|
|
Audio voltage |
Audio Cable; Input: Impedance 35 kΩ, Amplitude 2 V [p-p] |
|
| Built-in Mic | N/A | |
|
SMART
|
Behavior Detection |
Intrusion (Perimeter), Crossline (Tripwire), Double Crossline (Double Tripwire) |
| Intelligent Identification | Loitering, Running, Abandoned Object (Object Left), Parking | |
| Statistical Analysis | Face Capture, People Counting, Crowd Detection, On Duty Detection, Helmet Detection, Human & Vehicle Classification, Abnormal Video & Audio Detection | |
| Alarm Management | Motion Detection, Tampering (Masking), IP Address Conflict, Pre/Post Alarm Recording, Alarm Recording/Snapshot | |
| Auto Tracking | Supported | |
|
INTERFACE
|
Protocols |
TCP/IP, UDP, IPv6, HTTP, FTP, NFS, DHCP, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP (SSL/TLS), 802.1X, Unicast, Multicast, SNMP, SSL, P2P |
| Security | AES Video Encryption, IP Filter, User authentication (multiple privilege level), 802.1X authentication (EAP-MD5), Digest authentication, User Access Log | |
|
Compatibility |
ONVIF Profile (S, G, T), SDK/API/CGI |
|
|
Network |
1 x RJ45 10M/100M Self Adaptive Ethernet Port |
|
| Alarm Interface | 8/2 | |
| Alarm Voltage | Output: Impedance 600 Ω, Amplitude 2 V [p-p] | |
| Serial Interface | 1 x RS485 | |
| BNC | Supported | |
| USB | N/A | |
| Edge Storage | Built-in MicroSD card slot, up to 256 GB | |
| ANR | Supported | |
| Built-in speaker | N/A | |
| Built-in Heater | N/A | |
| Cable Interface | Pig Tail | |
| Remote Connection | ≤7 | |
| Web Client | EyeConnect | |
| Web Language | 16 | |
| Wiper | N/A | |
|
PAN & TILT
|
Pan Range |
360° |
| Pan Speed | Pan Manual Speed: 0.1°/s ~ 240°/s, Pan Preset Speed: 300°/s | |
| Tilt Range | -16° ~ 90° (Auto flip) | |
| Tilt Speed | Tilt Manual Speed: 0.1°/s ~ 180°/s, Tilt Preset Speed: 240°/s | |
| Preset Accuracy | ±0.4° | |
| 3D Position | Supported | |
| Cruise | 16, up to 32 presets per cruise | |
| Scan | 8 | |
| Pattern | 8, each with 600s memory or 1000 orders | |
| Number of Preset | 500 | |
| Power off Recovery | Supported | |
|
GENERAL
|
Power Supply |
24V AC, 24V DC, POE++ |
|
Max. Power Consumption |
22 W (IR OFF),44.22 W (IR ON) |
|
| Working Temperature | -40 °C ~ 70 °C (IR OFF), -40 °C ~ 40 °C (IR ON) | |
| Working Humidity | 0-95% RH (non-condensing) | |
| Ingress Protection | IP67 | |
| Vandal Resistant | IK10 (Housing) | |
| Surge Protection | Supported | |
| Reset Button | Supported | |
| Dimensions | Φ222×372 mm | |
| Net Weight | 5.3Kg |
