5MP EXPLOSION PROOF...

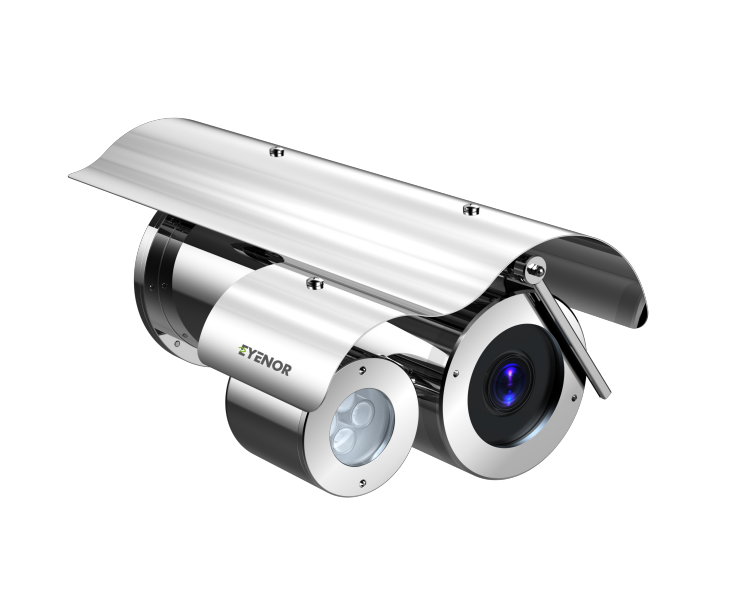

5MP EXPLOSION PROOF BULLET CAMERA
ENC-HBU8M-100R-245MP SS316L Explosion Proof IR IP H.265 Bullet Camera with 2.7 to 13.5mm Motorized Lens, PoE, SD Card Slot, WDR, Smart Analytics, Wiper and 100m IR Support
Overview Specifications Ordering Information
Overview
5MP SS316L Explosion Proof IR IP H.265 Bullet Camera with 2.7 to 13.5mm Motorized Lens, PoE, SD Card Slot, WDR, Smart Analytics, Wiper and 100m IR SupportSpecifications
|
MODEL |
Model No. |
ENC-HBU8M-100R-24 |
|
Type |
5MP EXPLOSION PROOF BULLET CAMERA |
|
|
|
Image Sensor |
1/2.8" CMOS Progressive 5.0 MegaPixel |
| Day / Night | IR Cut Filter with Auto Switch | |
| Lens Type | Motorized | |
| Focal Length | 2.7-13.5 mm | |
| Focus | Auto / Manual | |
| Iris | DC Auto Iris | |
| Lens Mount | Φ14 | |
| Angle of view (H) | 94.2° ~ 29.3° | |
| Angle of view (V) | 70.3° ~ 22° | |
| Angle Adjustment | Bracket; Pan: 0~360°, Tilt: 0~75°, Rotate: 0~360° | |
| Aperture Range | F1.6 ~ F3.3 | |
|
CAMERA |
Shutter |
1s to 1/100,000s |
|
|
Min. Illumination |
Color: 0.001 lux @ F1.6, B/W: 0 lux with IR |
| AGC | Auto / Manual | |
| Digital Noise Reduction | 3D DNR | |
| S/N Ratio | 55 dB | |
|
Defog |
Smart Defog |
|
| WDR | 120 dB | |
| Smart IR | Up to 100 m | |
|
Wavelength |
850 nm |
|
| Max. Resolution | 2592x1944 | |
|
VIDEO
|
Video Compression |
H.265+, H.265, H.264, MJPEG |
|
Frame Rate |
Main Stream: (2592×1944, 2592x1520, 2560×1440, 2304×1296) @ 25 / 30fps, (1920×1080, 1280×720) @ 50 /60fps Sub Stream: (704×480, 704×240, 640×360, 352×240) @ 30fps, (704×576, 704×288, 640×360, 352×288) @ 25fps Third Stream: (1920×1080, 1280×720, 640×360, 704×480, 704×240, 352×240) @ 30fps, (1920×1080, 1280×720, 640×360, 704×576, 704×288, 352×288) @ 25fps |
|
| Stream Settings | i-Frame, PAL/NTSC, Frame Rate (1~30FPS), EIS, SVC | |
|
Video Bit Rate |
32 kbps ~ 16 Mbps |
|
| Bitrate Type | CBR, VBR | |
| Image Settings | Brightness, Contrast, Saturation, Hue, Sharpness, Rotation/Mirror, Gain, Exposure, Day/Night | |
| White Balance | Auto, Semi Auto, Sunshine, Daylight, Warm Light, Filament, Nature Light, Lock WB, Manual | |
| Corridor Mode | Supported | |
| HLC | Supported | |
|
BLC |
Supported |
|
|
OSD |
Total 8 regions |
|
| OSD Type | Title, Week, Date, Time, Text with different colors and adaptable sizes (16×16, 32×32, 48×48, 64×64, 96×96), Image overlay | |
|
ROI |
Up to 8 regions |
|
| Privacy Mask | Up to 4 regions | |
| Heatmap | Supported | |
|
AUDIO |
Audio Compression |
G.711A, G.711U, ADPCM_D, AAC_LC |
|
Audio Bit Rate |
8 kbps ~ 48 kbps |
|
|
Audio I/O |
1/1 |
|
| Audio Voltage |
Audio input, level 5V, input impedance 1500 ohms Audio output, level 3V, output impedance 100 ohms |
|
|
SMART
|
Behavior Detection |
Intrusion (Perimeter), Crossline (Tripwire), Double Crossline (Double Tripwire) |
| Intelligent Identification | Loitering, Running, Abandoned Object (Object Left), Missing Object (Object Lost), Parking | |
| Statistical Analysis | Face Detection (Capture), People Counting, Crowd Detection, On Duty Detection, Helmet Detection, Human & Vehicle Classification, Abnormal Video & Audio Detection | |
| Alarm Management | Motion Detection, Tampering (Masking), Input & Output Event, IP & MAC Address Conflict, Disk Alarm (Full & R/W Error), FTP Server Exception, Abnormal Voltage, Pre/Post Alarm Recording, Alarm Recording/Snapshot | |
|
INTERFACE
|
Protocols |
TCP/IP, UDP, IPv4 ,IPv6, ICMP, HTTP, HTTPS, FTP, NFS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, RTMP, PPPoE, NTP, UPnP, SMTP (SSL/TLS), IGMP, 802.1X, QoS (DSCP), Unicast, Multicast, ARP, SNMP, SSL, Telnet, SFTP (SSH), P2P |
| Security | AES Video Encryption, IP Filter, User Authentication (Multiple Privilege Level), 802.1X Authentication (EAP-MD5), HTTPS Authentication, Digest Authentication, User Access Log | |
|
Compatibility |
ONVIF Profile (S, G, T), SDK/API/CGI |
|
|
Network |
1 x RJ45 10M/100M Self Adaptive Ethernet Port |
|
| Wi-Fi | N/A | |
| Alarm Interface | 2 Input / 1 Output | |
| Alarm Voltage | Input (switch type) , Output (3.3V-12V, 10 ohm) | |
| RS485 | Supported | |
| RS232 | N/A | |
| USB | N/A | |
| Edge Storage | Micro SD card slot, up to 512 GB | |
| ANR | Supported | |
| Built-in Speaker | N/A | |
| Built-in Heater | Supported (Optional) | |
| Wiper | Supported | |
| Cable Interface | Pig Tail | |
| Remote Connection | ≤7 | |
| Web Client | EyeConnect | |
| Web Language | 16 | |
|
GENERAL
|
Power Supply |
12V DC, PoE+ ( Optional 220V AC for Built-in Heater) |
| Power Consumption | Max. 25W (with thermostat) | |
| Working Temperature | -45 °C ~ +80 °C | |
| Working Humidity | ≤95% RH (non-condensing) | |
| Atmospheric pressure | 80 kPa ~ 106 kPa | |
| Window glass | Strong tempered glass | |
| Sun shade | Supported | |
| Surge Protection | TVS4000V | |
| Ingress Protection | IP68 | |
| Reset Button | Supported | |
| Dimensions | 523x406x221 mm | |
| Net Weight | 15.5 kg |
