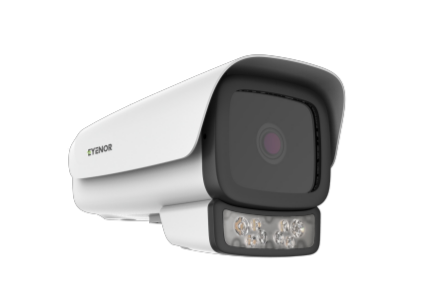

8 MP MOTORIZED BULLET CAMERA
ENC-HBUAM-00R-968MP Starlight IR IP H.265 Bullet Camera with 10-47mm Motorized Lens, WDR, SD Card Slot, Smart Analytics, Face Capture and 45m White Light Support
Overview Specifications Ordering Information
Overview
8MP Starlight IR IP H.265 Bullet Camera with 10-47mm Motorized Lens, WDR, SD Card Slot, Smart Analytics, Face Capture and 45m White Light Support
Specifications
|
MODEL |
Model No. |
ENC-HBUAM-00R-96 |
|
Type |
8MP MOTORIZED BULLET CAMERA |
|
|
|
Image Sensor |
1/1.8" CMOS Progressive 8.0 MegaPixel |
| Day / Night | N/A | |
|
|
Lens Type |
Motorized |
| Focal Length | 10-47 mm | |
|
|
Iris |
DC Auto Iris |
| Lens Mount | Integrated | |
| Angle of view (H) | 41° ~ 9.1° | |
| Angle of view (V) | 23.4° ~ 5.2° | |
| Angle Adjustment | N/A | |
|
|
Aperture Range |
F1.35 ~ F1.55 |
| Shutter | 1s to 1/100,000s | |
|
CAMERA
|
Min. Illumination |
Color: 0.01 lux @ F1.35 |
|
AGC |
Auto / Manual |
|
| Digital Noise Reduction | 3D DNR | |
| S/N Ratio | 55dB | |
|
Defog |
Smart Defog |
|
|
WDR |
120 dB |
|
| Smart IR | N/A | |
| Wavelength | 850nm | |
|
White LEDs |
6 |
|
|
VIDEO
|
Max. Resolution |
3840×2160 |
|
Video Compression |
H.265+, H.265, H.264, MJPEG |
|
| Frame Rate | Main Stream: (3840×2160, 3072×1728, 2560×1440, 2304×1296, 1920×1080, 1280×720) @ 30fps, (3840×2160, 3072×1728, 2560×1440, 2304×1296, 1920×1080, 1280×720) @ 25fps Sub Stream: (704×240, 704×480, 352×240, 640×360) @ 30fps, (704×288, 704×576, 352×288, 640×360) @ 25fps Third Stream: (1920×1080, 1280×720, 640×480) @ 30fps, (1920×1080, 1280×720, 640×480) @ 25fps | |
|
Stream Settings |
i-Frame, PAL/NTSC, Frame Rate (1~30FPS), EIS, SVC |
|
| Video Bit Rate | 32 kbps ~ 16 Mbps | |
|
Bitrate Type |
CBR, VBR |
|
| Image Settings | Brightness, Contrast, Saturation, Hue, Sharpness, Rotation/Mirror, Gain, Exposure, Day/Night | |
| White Balance | Auto, Semi Auto, Sunshine, Daylight, Warm Light, Filament, Nature Light, Lock WB, Manual | |
| Corridor Mode | Supported | |
|
HLC |
Supported |
|
|
BLC |
Supported |
|
| OSD | Total 5 regions | |
|
OSD Type |
Title, Week, Date, Time, Text with different colors and adaptable sizes (16×16, 24×24, 32×32, 48×48, 64×64, 96×96), Image overlay |
|
| ROI | Support | |
| Privacy Mask | Supported | |
|
Heatmap |
Supported |
|
|
AUDIO |
Audio Compression |
G.711A, G.711U, ADPCM_D, AAC_LC |
|
Audio Bit Rate |
8 kbps ~ 48 kbps |
|
|
Audio I/O |
1/1 |
|
|
Audio Voltage |
Audio cable; Input: impedance 35 kΩ; amplitude 2 V [p-p] |
|
| Built-in Mic | N/A | |
|
INTERFACE
|
Alarm Management |
Motion Detection, Tampering (Masking), Input & Output Event, IP & MAC Address Conflict, Disk Alarm (Full & R/W Error), FTP Server Exception, Abnormal Voltage, Pre/Post Alarm Recording, Alarm Recording/Snapshot |
|
Protocols |
TCP/IP, IPv4 ,IPv6, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP (SSL/TLS), QoS (DSCP), Unicast, Multicast, Telnet, P2P |
|
|
Security |
AES Video Encryption, IP Filter, User Authentication (Multiple Privilege Level) |
|
|
Compatibility |
ONVIF Profile (S, T), SDK/API/CGI |
|
| Network | 1 x RJ45 10M/100M/1000M Self Adaptive Ethernet Port | |
| Wi-Fi | N/A | |
| Alarm Interface | 1/1 | |
| Alarm Voltage | Output: Impedance 600 Ω; Amplitude 2 V [p-p] | |
| RS485 | N/A | |
| RS232 | N/A | |
| USB | N/A | |
| Edge Storage | Built-in MicroSD card slot, up to 128 GB | |
| ANR | Supported | |
| Built-in Speaker | N/A | |
| Built-in Heater | N/A | |
| Cable Interface | Pig Tail | |
| Remote Connection | ≤7 | |
| Web Client | EyeConnect | |
| Web Language | 16 | |
|
GENERAL
|
Power Supply |
24V AC |
| Max. Power Consumption | 17 W | |
|
Working Temperature |
-30 °C ~ 65 °C |
|
|
Working Humidity |
0-95% RH (non-condensing) |
|
|
Ingress Protection |
IP67 |
|
| Vandal Resistant | IK10 (Housing) | |
| Surge Protection | Supported | |
| Reset Button | Supported | |
| Dimensions | 372.9×167.6×175.5 mm | |
| Net Weight | 3 kg |
