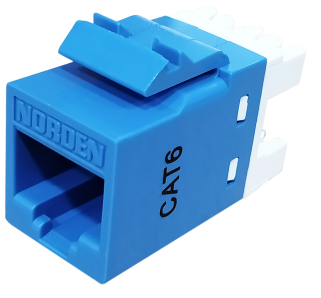

Category 6 UTP Keystone Jack Punch Down
122-33P180XUTP keystone jack exceed TIA/EIA and ISO component and channel performance, can be used in unloaded patch panels, face plates in a variety of colour options. These Jacks are designed to reduce the Insertion loss & Alien cross talk in order to provide maximum flexibility and high performance and are...
Overview Specifications Ordering Information
Overview
UTP keystone jack exceed TIA/EIA and ISO component and channel performance, can be used in unloaded patch panels, face plates in a variety of colour options. These Jacks are designed to reduce the Insertion loss & Alien cross talk in order to provide maximum flexibility and high performance and are...Specifications
COMPLIANCE
IEEE 802.af, IEEE 802.3at for PoE applications.
ANSI/TIA-568-C.2, ISO/IEC-11801, EN50173-2
DESIGN & MATERIALS
|
Size |
22.88 x 14.47 x 30.64 mm |
|
Angle |
180 Degree |
|
Temperature |
-40 °C to +70 °C (Storage), -10 °C to +65 °C (Operation) |
|
Housing Material |
High Impact, Flame-Retardant Plastic Compound, Ul 94 V-0 |
|
IDC Type |
Dual (110 Or Krone) Type |
|
IDC Wire Gauge |
22-26 AWG, Solid or Stranded |
|
Color Coding |
As Per 568 A/B Standard |
STANDARDS
|
Flammability Rating |
UL 94 V-0 |
|
Safety Rating |
UL 1863 |
ELECTRICAL DATA
|
Current Rating |
1.5 A |
|
Insulation Resistance |
500 MΩ min 100 Vdc |
|
Voltage Rating |
230 V rms Max |
|
Dielectric Voltage |
1000 V dc or ac, 60 Hz for 1 min (Contact-Contact) |
Ordering Information
| Part Number | Description |
|
122-33P180X |
Category 6 UTP Keystone Jack Un Shuttered Punch Down 180Deg |
