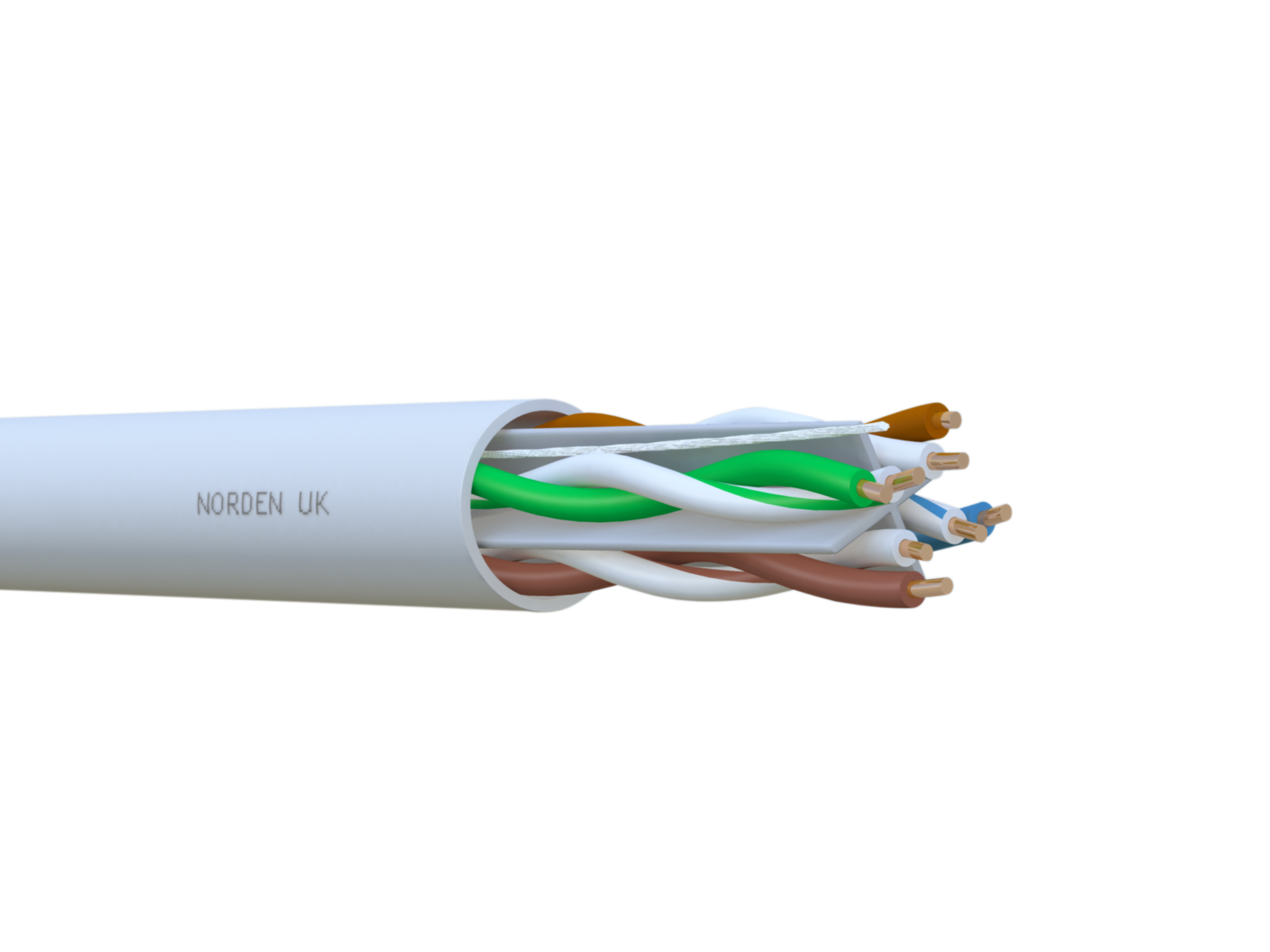

Category 6A F/UTP 4...
Category 6A F/UTP 4 Pair Cable-2
Norden Category 6A F/UTP cables exceed Category 6A / Class EA specification. It is tested to 500 MHz frequency range and designed to support 10 Gigabyte applications to full 100 m.Extremely high pair-balance providing excellent EMC (Electro Magnetic compatibility), minimizing radiation, maximizing noise immunity and providing high alien cross talk...
Overview Specifications Ordering Information
Overview
Norden Category 6A F/UTP cables exceed Category 6A / Class EA specification. It is tested to 500 MHz frequency range and designed to support 10 Gigabyte applications to full 100 m.Extremely high pair-balance providing excellent EMC (Electro Magnetic compatibility), minimizing radiation, maximizing noise immunity and providing high alien cross talk...Specifications
COMPLIANCEIEEE 802.3an :2006 (10GBASE-T) |
PRODUCT CLASSIFICATION
| Product Sequence | E Series |
| Product Type | Twisted Pair Cable |
MATERIAL CONSTRUCTION & DESIGN
| Conductor Material | Solid Bare Copper |
| Conductor Size | 23 AWG |
| Conductor Construction | Solid |
| Insulation Material | HDPE |
| Insulation O.D. | 1.35 mm nom. |
| Colour Code | Per TIA/EIA 568-B |
| Screening Material | Aluminium/Polyester Foil |
| Screening Design | 100 % Coverage |
| Conductor Unit Lay-Up | Pairs |
| Overall Drain-Wire Material | Tinned Copper 0.10 mm |
| Total Number of Wires | 8 |
| Outer Jacket Material | PVC/LSOH |
| Outer Jacket Thickness & Ex. Diameter | 0.50±0.05 mm, 7.3±0.4 mm |
| Rip Cord | Yes |
| Outer Jacket Colour | Per Requirement |
ELECTRICAL & MECHANICAL CHARACTERISTICS
| Frequency Range | 1-500 MHz |
| Impedance | 100 Ω±6 |
| Coupling Attenuation | 55 dB min @ 30-100 MHz 55-20 Log (f/100) @100-500 MHz |
| Max. DC Resistance | 72 Ω/km @ 20 °C |
| Max. Resistance Unbalance | 2 % |
| Capacitance Unbalace | 1.2 pF/m nom. |
| Velocity of Propagation | 78 % nom. |
| Propagation Delay Skew | 25 ns/100m max. |
| Dielectric Strength | 1.5 KV/minute |
| Dielectric Strength to Shield | 1.5 KV/minute |
| Min. Insulation Resistance | 5 GΩ•km |
| Transfer Impedance | 1000 mΩ/m max @ 100 MHz |
| Max. Tensile Strength-Short Term | 130 N |
| Min. Bend Radius | 55 mm |
| Operating Temperature Range | -20 °C +65 °C |
TRANSMISSION PERFORMANCE
Cat. 6A Screened Pair Horizontal Cables*| Freq. MHz |
Attenuation dB/100m @ 20ºC |
NEXT dB |
PSNEXT dB |
RL dB |
ACR dB |
ELFEXT dB |
PSELFEXT dB |
| 1 | 1.7 | 86.3 | 83.3 | 23.0 | 84.6 | 84.0 | 80.0 |
| 4 | 3.4 | 85.0 | 83.0 | 23.0 | 75.6 | 81.0 | 78.0 |
| 10 | 5.4 | 77.3 | 74.3 | 25.0 | 71.9 | 76.0 | 73.0 |
| 20 | 7.6 | 70.0 | 67.0 | 25.0 | 62.4 | 70.0 | 67.0 |
| 31.25 | 9.7 | 68.0 | 65.0 | 23.8 | 58.3 | 65.0 | 63.0 |
| 100 | 18.0 | 65.3 | 62.3 | 21.1 | 47.3 | 55.0 | 52.8 |
| 150 | 23.6 | 62.0 | 59.8 | 18.8 | 38.4 | 53.5 | 51.5 |
| 200 | 27.4 | 59.0 | 57.2 | 18.0 | 31.6 | 49.0 | 46.0 |
| 250 | 31.0 | 57.6 | 54.6 | 17.3 | 26.6 | 44.0 | 41.0 |
| 300 | 34.2 | 55.0 | 52.0 | 16.8 | 20.8 | 39.6 | 36.6 |
| 400 | 40.0 | 53.0 | 51.8 | 16.8 | 13.0 | 37.0 | 34.0 |
| 500 | 42.2 | 52.0 | 50.0 | 16.8 | 9.8 | 35.0 | 33.0 |
Ordering Information
COMPLIANCEIEEE 802.3an :2006 (10GBASE-T) |
PRODUCT CLASSIFICATION
| Product Sequence | E Series |
| Product Type | Twisted Pair Cable |
MATERIAL CONSTRUCTION & DESIGN
| Conductor Material | Solid Bare Copper |
| Conductor Size | 23 AWG |
| Conductor Construction | Solid |
| Insulation Material | HDPE |
| Insulation O.D. | 1.35 mm nom. |
| Colour Code | Per TIA/EIA 568-B |
| Screening Material | Aluminium/Polyester Foil |
| Screening Design | 100 % Coverage |
| Conductor Unit Lay-Up | Pairs |
| Overall Drain-Wire Material | Tinned Copper 0.10 mm |
| Total Number of Wires | 8 |
| Outer Jacket Material | PVC/LSOH |
| Outer Jacket Thickness & Ex. Diameter | 0.50±0.05 mm, 7.3±0.4 mm |
| Rip Cord | Yes |
| Outer Jacket Colour | Per Requirement |
ELECTRICAL & MECHANICAL CHARACTERISTICS
| Frequency Range | 1-500 MHz |
| Impedance | 100 Ω±6 |
| Coupling Attenuation | 55 dB min @ 30-100 MHz 55-20 Log (f/100) @100-500 MHz |
| Max. DC Resistance | 72 Ω/km @ 20 °C |
| Max. Resistance Unbalance | 2 % |
| Capacitance Unbalace | 1.2 pF/m nom. |
| Velocity of Propagation | 78 % nom. |
| Propagation Delay Skew | 25 ns/100m max. |
| Dielectric Strength | 1.5 KV/minute |
| Dielectric Strength to Shield | 1.5 KV/minute |
| Min. Insulation Resistance | 5 GΩ•km |
| Transfer Impedance | 1000 mΩ/m max @ 100 MHz |
| Max. Tensile Strength-Short Term | 130 N |
| Min. Bend Radius | 55 mm |
| Operating Temperature Range | -20 °C +65 °C |
TRANSMISSION PERFORMANCE
Cat. 6A| Part Number | Description | Standard Length |
|
114-40001204X |
Category 6A F/UTP 23 AWG 4 Pair Cable PVC E Series |
305 mtr |
|
114-40002204X |
Category 6A F/UTP 23 AWG 4 Pair Cable LSZH E Series |
305 mtr |
X: BK(Black), BL(Blue), GN(Green), GY(Gray), RD(Red), WH(White), YL(Yellow)
Screened Pair Horizontal Cables*
