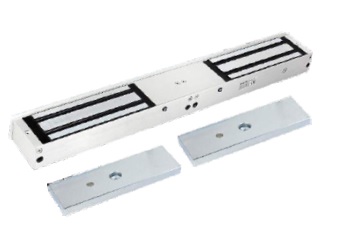

Double door X 280KG Magnetic locks
NAC-6005MLDouble door X 280KG Magnetic locks
Overview Specifications Ordering Information
Overview
Double door X 280KG Magnetic locksSpecifications
APPLICATION
Office areas, schools, communities, office buildings, hotels, shopping malls, shops, public service places, etc
TECHNICAL PARAMETERS
|
Lock Size |
500Lx48.5Wx25H(mm) |
|
Plate |
180Lx38Wx11H(mm) |
|
Holding Force |
280kgx2 (600Lbsx2) |
|
Voltage |
DC12V or DC24V (adjustable) |
|
Current Draw |
12V/500mAx2 24V/250mAx2 |
|
Signal Output |
Dry Contact, Max Rating of Contact Current 3A |
|
Surface Temp |
≤20°C |
|
Operating Temp |
-10°C~ 55°C(14°F~131°F) |
|
Suitable Humidity |
0~90%(non-condensing) |
|
Finishes for Shell |
Anodized aluminum surface texture processing |
|
Finishes for Magnetic |
Zinc |
|
Finishes for Armature |
Zinc |
|
Weight |
4Kg |
|
Standard Packing |
4Pcs |
Ordering Information
| Part Number | Description |
|
NAC-6005ML |
Double door X 280KG Magnetic locks |
