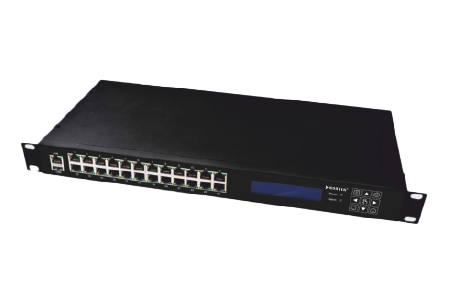

INTELLIGENT PATCH PANEL NETWORK SCANNER
13V-24BKNetwork Scanner is the key equipment of the system which builds the communication between the software and the smart panel. The network scanner reports the information of the ports to the management software in the server. The scanner connects with server via Ethernet, and there is no master or slave...
Overview Specifications Ordering Information
Overview
Network Scanner is the key equipment of the system which builds the communication between the software and the smart panel. The network scanner reports the information of the ports to the management software in the server. The scanner connects with server via Ethernet, and there is no master or slave...Specifications
COMPLIANCE
UL 60950-1, IEC/EN 60950-1, First Edition, AS/NZ 60950-1:2003
EN 55022; EN 55024.
FEATURES
- All the scanners can be linked to each other through the network port at front panel via a switch.
- Each scanner will need to have a different IP but under the same network section.
- Auto result of connecting ports adjustment, moving and updating.
- Instant checking of historical record.
- It provides clear management of the Switch through the mapping relationship of the ports.
- It provides LED indication, alarm, software interface, e-mail as well as short message to alert the illegal damage or connecting.
- The Browser Server structure of the software enable the far end management
- Enable the manager a glance on the display of each Link connection
- Real simulation of the field cabinet
- Data Wave Network System can import from JPEG, BMP even CAD formats to setup the physical location of the all connecting states.
TECHNICAL SPECIFICATIONS
|
Class of equipment |
Class I |
|
Input Voltage |
100V ~ 240V AC |
|
Input Current |
0.6A ~ 1.2A |
|
Output Voltage |
10x (DC 5V/3.5A) Total combined current ?35A |
|
Output Power |
30W |
|
Operation Frequency |
50Hz/60Hz |
|
Power-on Time |
0.5sec |
|
Efficiency |
80%(output power/input power) |
|
Circuit Protection |
Auto reset short circuit protection is available |
|
Loading Adjustment |
5% |
|
Overload Protection |
When the load power is more than 120 -150% of the rating |
|
UV Rating |
No exposure to direct radiation from sunlight |
|
IP Rating |
N/A |
|
Operating Temperature |
-10oC ~ +50oC |
|
Storage Temperature |
-20oC ~ +85oC |
|
Humidity |
Not exceeding 60% R.H |
|
Height |
65.0mm/ 2.55" (1.5U) |
|
Width |
482.6mm/ 19" |
|
Depth |
191.7mm |
|
Weight |
4.4 Kg |
|
Ethernet interface |
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX |
|
Ethernet speed |
10 MB/sec or 100 MB/sec (half duplex or full duplex) |
|
Ethernet status indicators: |
Green LED for Power ON Red LED for data transmit and receive |
Ordering Information
| Part Number | Description |
|
13V-24BK |
24 Way Intelligent Patch Panel Network Scanner Version 3.0 |
