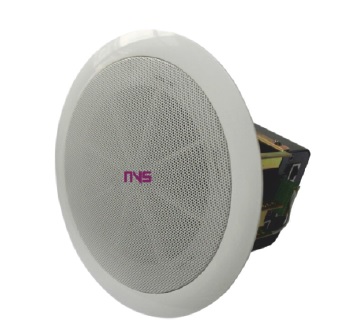

IP Network Ceiling Speaker
NVS-IP30030SPNVS-IP30030SP IP network ceiling speaker is a network of all-digital analog-digital conversion signal processor based on the TCP / IP transmission protocol. With dual network port design, it can be attached to any place that the network can reach. Remote audio data stream can be output through the machine audio signal with the host intelligent control; built-in MP3 player, with a USB interface and SD card jack, can play the MP3 program when not playing the network audio stream signal; can implement the schedule point off the host
Overview Specifications Ordering Information
Overview
NVS-IP30030SP IP network ceiling speaker is a network of all-digital analog-digital conversion signal processor based on the TCP / IP transmission protocol. With dual network port design, it can be attached to any place that the network can reach. Remote audio data stream can be output through the machine audio signal with the host intelligent control; built-in MP3 player, with a USB interface and SD card jack, can play the MP3 program when not playing the network audio stream signal; can implement the schedule point off the hostSpecifications
FEATURES
- Dual network port design, can work across the network segment;
- Can be attached to any place where the network arrives;
- With MP3 decoding play function;
- Support max 48kHz sampling rate 16bit digital audio stream decoding;
- Built-in 2 × 15W digital amplifier, low power settings.
- Can play the background music, emergency paging, alarm signals from the system host;
- With 1-channel auxiliary audio input interface, 1-channel auxiliary audio output interface, 1-channel microphone input and
- 1-channel EMC emergency output interface, 1-channel short circuit output.
- Local output volume and local play status are controllable
|
Model |
NVS-IP30030SP |
|
|
AUX In |
Input Sensitivity |
300mV |
|
Frequency response |
25Hz-20kHz |
|
|
Distortion |
0.03% |
|
|
Noise |
1mV |
|
|
SNR |
80dB |
|
|
AUX Out |
Sensitivity |
1000mV |
|
Frequency response |
10Hz-26kHz |
|
|
Distortion |
?0.3% |
|
|
SNR |
?75dB |
|
|
AUX Out
|
Rated Output |
1000mV |
|
Freq Response |
20Hz-20kHz |
|
|
Distortion |
?0.1% |
|
|
SNR |
?75 dB |
|
|
MIC Input |
Input Sensitivity |
4mV |
|
Frequency response |
25Hz-16kHz |
|
|
Distortion |
?0.5% |
|
|
SNR |
?70dB |
|
|
USB/SD/NET/Play MP3
|
Frequency response |
25Hz-18kHz |
|
Distortion |
?0.5% |
|
|
SNR |
?75dB |
|
|
Support SD card capacity |
32GB |
|
|
Support U disk capacity |
32GB |
|
|
Power |
15Wx2 |
|
|
Power Supply |
AC180-250V/50Hz-60Hz |
|
|
Weight |
1.5Kg |
|
|
Machine Dimensions |
250x175x255mm |
|
Ordering Information
| Part Number | Description | Standard Quantity |
|
NVS-IP30030SP |
IP Network Ceiling Speaker |
1 No. |
