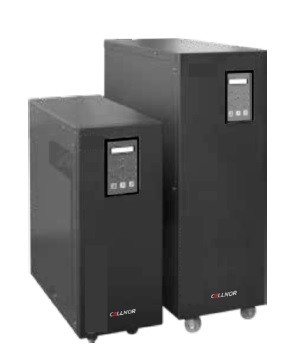

Online Transformer 6kVA UPS
Maxpower series also have transformer-based UPS with output power factor 0.8. This series UPS has a high reliability design and strong protection for load.
Overview Specifications Ordering Information
Overview
Maxpower series also have transformer-based UPS with output power factor 0.8. This series UPS has a high reliability design and strong protection for load.Specifications
GENERAL FEATURES
- High reliability design
- Wide input range
- Strong protection for load
- Optimization of high-performance battery
- Cold start
- Comprehensive and reliable protection for load
- User-friendly network management
| Model | CN9006OT | ||
|
Capacity |
VA |
6kVA |
|
|
Watts |
4.8kW |
||
|
Input |
Normal Input Voltage |
220/230Va | |
|
Operating Voltage Range |
165~275Vac |
||
|
Operating Frequency Range |
50/60 Hz (±5%) |
||
|
Power Factor |
>0.97(with filter) |
||
|
Max. input current(A) |
42 |
||
|
Output |
Output voltage |
220Vac(±0.5%) / 230Vac(±0.5%) | |
|
Output frequency |
50/60Hz(±0.5%) |
||
|
Crest factor |
3:1 (max) |
||
|
Efficiency |
>85% |
||
|
Harmonic distortion (THD) |
<1.5%(linear load) |
||
|
Battery |
Battery voltage |
192Vdc | |
|
System |
Transfer time |
0 ms ( Line mode - Battery mode) | |
|
Overload |
>125% : 1min, >150%: 200ms |
||
|
Communication interface |
RS232, SNMP(optional), Dry contact (optional) |
||
|
Environmental |
Operating temperature |
0~40°C | |
|
Humidity range |
0~95% (Non-condensing) |
||
|
Altitude |
<1500m |
||
|
Noise level |
<55dB |
||
|
Physical |
Dimension W x D x H (mm) |
230×580×720(S) 250×500×635(H) |
|
|
Net Weight S/H (kg) |
108/63 |
||
| STANDARDS | |||||
|
|
Safety |
IEC/EN62040-1; IEC/EN60950-1 |
|||
|
EMC |
IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4; IEC61000-4-5;IEC61000-4-6;IEC61000-4-8 |
||||
Ordering Information
| Part Number | Description | ||
|
CN9006OT |
6kVA Online Transformer Base UPS |
||
