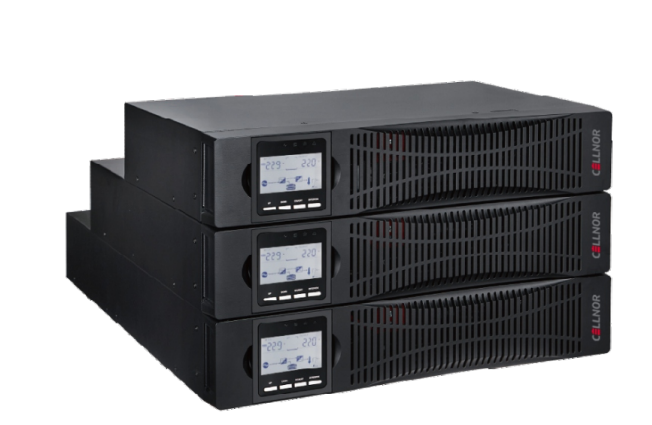

Online Transformerless Rack Mount 1kVA UPS
MAXPOWER Series is a small to medium power transformer-less UPS of CellNor. This series has Rack/Tower convertible design and a high output power factor at 0.9PF. It has a Hot-Swappable Battery and support Economic (ECO) Operation Mode. CN7001MPI-RM/CN7001MPE-RM is a true online double conversion UPS with efficiency up to 90%
Overview Specifications Ordering Information
Overview
MAXPOWER Series is a small to medium power transformer-less UPS of CellNor. This series has Rack/Tower convertible design and a high output power factor at 0.9PF. It has a Hot-Swappable Battery and support Economic (ECO) Operation Mode. CN7001MPI-RM/CN7001MPE-RM is a true online double conversion UPS with efficiency up to 90%Specifications
GENERAL FEATURES
- Rack Mount UPS for 19" installation
- Patented Minic LCD Display can be rotated
- True Online Double Conversion
- High Output Power Factor at 0.9PF
- Comprehensive display allows easy monitoring
- and access of UPS status
- Smart SNMP works with either USB or RS232
- together
- Hot-Swappable Battery
- Efficiency up to 90%
- Estimated Remaining Time displayed on the LCD
- Support Economic(ECO) Operation Mode
- Battery Pack
- Cold Start
- Battery Backup
- Emergency Power Off
| Model | CN7001MPI-RM/CN7001MPE-RM | ||
|
Capacity |
VA |
1000 |
|
|
Watts |
900 |
||
|
Phase |
Single phase with ground |
||
|
Input |
Normal Voltage |
208/220/230/240Vac | |
|
Input Voltage Range |
110~300Vac (176~280Vac @ 100% load) |
||
|
Frequency Range |
40~70Hz(50/60Hz Auto Sensing |
||
|
Power Factor |
≥0.99 @Nominal voltage(100% load) |
||
|
Output |
Output Voltage |
208/220/230/240Vac | |
|
Power Factor |
0.9 |
||
|
Voltage Regulation |
±1% |
||
|
Frequency range (Synchronized range) |
45~55Hz/56~64Hz |
||
|
Frequency range (Batt.mode) |
50Hz/60Hz±0.1Hz |
||
|
Current crest ratio |
3:1 |
||
|
Harmonic Distortion (THDv) |
≤3% THD(Linear load) |
||
|
≤5% THD(Non-linear load) |
|||
|
Transfer Time |
AC to DC |
Zero | |
|
Inverter to Bypass |
4ms(Typical) |
||
|
Waveform |
Pure Sinewave |
||
|
Efficiency |
AC Mode |
89% |
|
|
Battery Mode |
85% |
||
|
Battery |
Internal |
Battery Type |
12V/9AH |
|
Numbers |
2 3 |
||
|
Backup time |
»5 minutes, remaining time displayed on the LCD |
||
|
Typical Recharging Time |
4 hours recover to 90% capacity |
||
|
Charging current(max.) |
1.0A |
||
|
Charging Voltage |
27.4Vdc ±1% 41.1Vdc±1% |
||
|
Battery |
External |
Battery Number |
2 3 |
|
Charging voltage |
27.4Vdc ±1% 41.1Vdc ±1% |
||
|
Charging Current |
6A/12A |
||
|
Indicators |
LCD |
Load level, Battery level, AC mode, Battery mode, Bypass mode and Fault indicators | |
|
Alarm |
Battery Mode |
Beeping every 4 seconds | |
|
Battery Low |
Beeps every second |
||
|
Overload |
Beeps twice per second |
||
|
Fault |
Continously beeping |
||
|
Physical |
Dimension |
Standard model |
440 x 460 x 86.5 |
|
Long run model |
440 x 325x 86.5 |
||
|
Weight |
Standard model |
12/14 |
|
|
Long run model |
5.8 |
||
|
Environment |
Humidity |
20-90% RH @ 0-40°C (Non-condensing) | |
|
Noise level |
<50dB @ 1 Meter |
||
|
Management |
Smart RS232/USB |
Supports Windows® 2000/2003/XP/Vista/2008 Windows® 7/8 Linux, FreeBSD and MAC | |
|
Optional SNMP |
Power management from SNMP manager and web browser |
||
|
Standards |
Safety |
IEC/EN62040-1,IEC/EN62477-1 | |
|
EMC |
IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
|
||
| EXTERNAL BATTERY PACK | ||
| Model | CNBC00124CR | CNBC00136CR |
|
Battery Type |
VRLA (Lead acid maintenance free battery) |
|
| Typical battery recharging time | 6~8 hours (to 90% of full capacity) | |
| Typical Battery Life | 3~5 years, depend on discharging cycle and ambient temperature | |
|
System Voltage |
24Vdc |
36Vdc |
| Charging Current Max | 1.4A | 1 |
| Battery Qty | 4 | 6 |
|
Capacity |
9Ah/12V (7Ah/12V optional |
|
| Backup time @ 50% load | 16 minutes 30 minutes | |
| Backup time @ 100% load | 6 minutes 12 minutes | |
| Dimension | 440 x 430 x 86.5 | |
| Net weight(kg) | 17.4 22.5 | |
| Environment safety | CE | |
| Operating environment | 0°C~40°C | |
| Relative humidity | 0~95% (Non condensing) | |
| Noise Level | <40dB at 1 Meter | |
| STANDARDS | ||
|
Input socket |
IEC320 C13-10A |
|
| AC power cord | IEC320 C14-10A | |
| WARRANTY | ||
|
Limited Warranty |
15 Months |
|
Ordering Information
| Part Number | Description | ||
|
CN7001MPI-RM |
1kVA Medium Power Transformerless UPS (Internal battery) Rack Mount |
||
|
CN7001MPE-RM |
1kVA Medium Power Transformerless UPS (External battery) Rack Mount |
||
