PH 30 Fire Resistant Cable

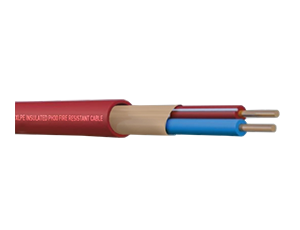

NORDEN FireNor PH 30 Fire Resistant Cables are manufactured within the specific requirement of fire resistant cable standards. The Fire Resistant Cable assures reliable circuit integrity to keep emergency evacuation systems operational even whilst the cable is burning.


Overview Specifications Ordering Information

Overview

NORDEN FireNor PH 30 Fire Resistant Cables are manufactured within the specific requirement of fire resistant cable standards. The Fire Resistant Cable assures reliable circuit integrity to keep emergency evacuation systems operational even whilst the cable is burning.

Specifications

CABLE CONSTRUCTION

Conductor

Plain Annealed Copper to BS 6360 Solid

Screen

Al-Polyester Tape Foil (100 % Coverage 20 % Overlapping)

Sheath Color

Red ( RAL 3000) or White

Insulation

Fire Resistant Silicon Rubber to BS 7655 - E12

Earth Wire

Tinned Copper to BS 6360 Solid 0.80mm

Standard Packing Mode

100 mtr / Plywood Reel
500 mtr / Plywood Reel (optional)

Insulation Colour

2 Core: Blue/Brown
3 Core: Blue/Brown/Black
4 Core: Blue/Brown/Black/Grey

Sheath

LSZH, Halogen Free Flame Retardant to
EN 50290-2,
BS 7655 LTS1/LTS3


Flame Tests Insulation Integrity Smoke Density Corrosive Gases Measurement LPCB Certified Standards

BS 4066 part 1 & 3
EN 50266-2-4
IEC 60332-3-24
IEC/EN 60332-1

IEC 60331
BS 6387 CWZ
EN 50200 PH30

BS 7622
IEC/EN 61034
HD 606

BS EN 50267-2-2
IEC 60754-2

BS 6387:2013 (Category CWZ)
IEC 60331-21:1999
EN 50200:2015 (Class PH30)
EN 60754-1:2014
EN 60754-2:2014
EN 61034-2:2005+A1:2013

ELECTRICAL & MECHANICAL CHARACTERISTICS

Properties Value
1.0 mm² 1.5 mm² 2.5 mm²

Max. Conductor Resistant @ 20ºC

18.0 Ω/km

12.0 Ω/km

7.4 Ω/km

Min. Insulation Resistant @ 0ºC

200 M?/km

Voltage Rating

300/500 V

Test Voltage

2000 V

Temperature Range (Fixed)

-30ºC to + 90ºC

Temperature Range (Flexing)

-5ºC to + 60ºC

Min. Bend Radius (Fixed)

8 x D

Min. Bend Radius (Flexing)

15 x D

PHYSICAL INFORMATION

Nom. Cond.
Cross-Sect. mm²
Conductor Size
no./mm
Earth Wire Size
no./mm
Cable Diameter
mm (±5 %)
Weight Kg/km

2 x 1.0

1/1.12

1/0.80

5.80

51.0

2 x 1.5

1/1.37

1/0.80

6.65

70.0

2 x 2.5

1/1.75

1/0.80

7.80

100.0

3 x 1.0

1/1.12

1/0.80

6.00

65.0

3 x 1.5

1/1.37

1/0.80

6.75

90.0

3 x 2.5

1/1.75

1/0.80

8.25

135.0

4 x 1.0

1/1.12

1/0.80

6.60

81.0

4 x 1.5

1/1.37

1/0.80

7.60

110.0

4 x 2.5

1/1.75

1/0.80

9.10

165.0

Ordering Information

Part Number Description

51-1002X

PH30 Fire Resistant Cable, 2C x 1.0 mm²

51-1502X

PH30 Fire Resistant Cable, 2C x 1.5 mm²

51-2502X

PH30 Fire Resistant Cable, 2C x 2.5 mm²

51-1003X

PH30 Fire Resistant Cable, 3C x 1.0 mm²

51-1503X

PH30 Fire Resistant Cable, 3C x 1.5 mm²

51-2503X

PH30 Fire Resistant Cable, 3C x 2.5 mm²

51-1004X

PH30 Fire Resistant Cable, 4C x 1.0 mm²

51-1504X

PH30 Fire Resistant Cable, 4C x 1.5 mm²

51-2504X

PH30 Fire Resistant Cable, 4C x 2.5 mm²

X > RD:Red WH:White OR:Orange
