Remote Paging Station/Extender
Remote Paging Station/Extender
Overview Specifications Ordering Information
Overview

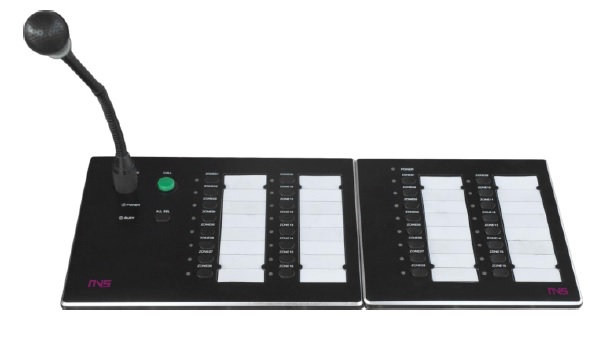

Remote Paging Station/Extender
Specifications
FEATURES
- 16 paging zones for single, multiple area paging, group paging, and full area paging;
- Dialing code address setting, which can connect a total of 32 remote MIC;
- Extended external keyboard for up to 9 keyboards;
- MIC has 1 AUX input, which can be used as a signal input for paging;
- Up to 32 remote paging MIC can be connected; with RJ45 interface and Dante protocol, support for loop connection;
- Support key custom grouping function
| SPECIFICATIONS | ||
|
Model |
NVS-5003PM16EV |
NVS-5007EX16EV |
|
MIC input sensitivity |
50mV 600Ω |
|
|
Line input sensitivity |
1000mV 10kΩ |
|
|
Freq. resp |
80Hz~15kHz (±3dB) |
|
|
Harmonic distortion |
<1% |
|
|
SNR |
>75dB (A weighting) |
|
|
PoE power supply |
(48±3)V/0.1A |
|
|
Phantom power supply |
|
(12~24)V/0.1A |
|
Interface |
RJ45 |
|
|
Package Size |
415×306×116mm |
355×266×116mm |
|
Machine Size |
166×220×54mm |
166×161×54mm |
|
G.W |
1.9Kg |
1.5Kg |
|
N.W |
1.4Kg |
1Kg |
Ordering Information
| Part Number | Description | Standard Quantity |
|
NVS-5007EX16EV |
Remote Paging Station Extender (16 zones) |
1 No. |
|
NVS-5003PM16EV |
Voice Evacuation System Remote Paging Station |
1No. |
