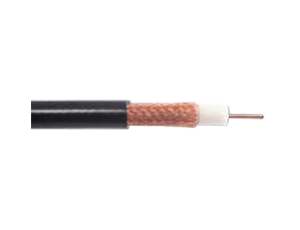

RG 59U Coaxial Cable 75 Ohm BC Braid 60% Coverage
Norden RG 59/U is used for video transmission in professional video applications, carrying either baseband analog video signals in closed circuit television (CCTV) system or serial digital interface (SDI) using 75 ohm coaxial cables. It can also be used as analog video Cable. The cable has PVC Jacket for internal & PE jacket for external applications. RG 59 Can be used as a branch cable with Standard Transmission distance up to 300m.
Overview Specifications Ordering Information
Overview
Norden RG 59/U is used for video transmission in professional video applications, carrying either baseband analog video signals in closed circuit television (CCTV) system or serial digital interface (SDI) using 75 ohm coaxial cables. It can also be used as analog video Cable. The cable has PVC Jacket for internal & PE jacket for external applications. RG 59 Can be used as a branch cable with Standard Transmission distance up to 300m.Specifications
ConductorBare Copper |
Insulation ColorNeutral |
Jacket ColorBlack |
InsulationFoam PE (Polyethylene) |
Braid WireBC Wire |
Outer JacketPVC/PE |
PHYSICAL CHARACTERISTICS
ELECTRICAL CHARACTERISTICS
|
 |
PERFORMANCE CHARACTERISTICS
| Frequency at 20°C (MHz) |
Attenuation (10% higher) (dB/100m) |
|
1 |
0.93 |
|
10 |
3.20 |
|
100 |
10.63 |
|
400 |
22.39 |
|
700 |
30.65 |
|
900 |
35.67 |
|
1000 |
37.15 |
RoHS GUIDELINE
| Properties | Value |
|
Calcium Content (Cd) |
< 0.01% |
|
Lead Content (Pb) |
< 0.1% |
|
Mercury Content (Hg) |
< 0.1% |
|
Chromium (VI) Content |
< 0.1% |
|
Polybrominated Biphenyls (PBB) |
Forbidden |
|
Polybrominated Diphenyl Ether (PBDE) |
Forbidden |
Ordering Information
| Part Number | Description |
|
475-012B60 |
RG 59U Coaxial Cable 75 Ohm BC Braid 60% Coverage |
|
475-012B60E |
RG 59U Coaxial Cable 75 Ohm BC Braid 60% Coverage PE Jacket External Cable |
