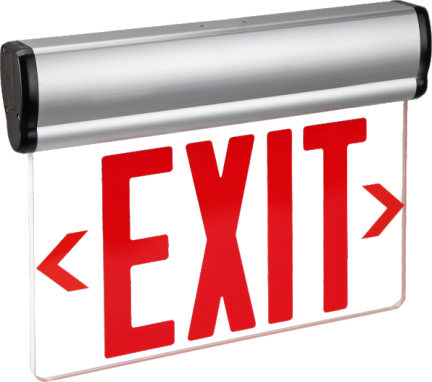

Safenor LED Exit Sign Aluminium Housing Single Face Red
Compact and decorative design. Aluminum housing with high grade acrylic panel. Replaceable acrylic EXIT panel. Removable directional indicators. Removable front cover for easy installation and battery maintenance. Letters 6" height with 3/4" stroke. Suitable for damp location.
Overview Specifications Ordering Information
Overview
Compact and decorative design. Aluminum housing with high grade acrylic panel. Replaceable acrylic EXIT panel. Removable directional indicators. Removable front cover for easy installation and battery maintenance. Letters 6" height with 3/4" stroke. Suitable for damp location.Specifications
TECHNICAL PARAMETERS
| Characteristics | Value |
|
Working Voltage |
AC120V/277V 60Hz |
|
AC power |
5W |
|
Charging time |
24 hours |
|
Emergency duration time |
More than 90 Minutes |
|
Light source |
LED |
|
Battery |
Ni-cd 4.8V 650mAh |
|
Working temperature |
-10ºC to 40ºC |
|
Working humidity |
≤ 90% RH |
|
Installation |
Wall, Side or Ceiling Mounting |
Ordering Information
| Part Number | Description |
|
NFE-5001RD |
Safenor LED Exit Sign Aluminium Housing Single Face Red |
