Self Supporting Fibre Optic Drop Cable

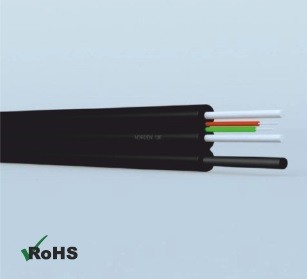

3182-U00017A2CLOne core flat drop cable is for Fibre To The Home (FTTH) application. The cable is constructed with two single mode fibres protected by dielectric strength member made of steel wire strength member and LSZH outer jacket for ultraviolet light protection and external use. It is very light in construction...
Overview Specifications Ordering Information
Overview
One core flat drop cable is for Fibre To The Home (FTTH) application. The cable is constructed with two single mode fibres protected by dielectric strength member made of steel wire strength member and LSZH outer jacket for ultraviolet light protection and external use. It is very light in construction...Specifications
lMECHANICAL & ENVIRONMENTAL CHARACTERISTICS
| Characteristics | Specification |
|
Cladding non-circularity |
≤ 1.0 % |
|
Mode field diameter@1310m |
8.6±0.4 um |
|
Cladding diameter |
125±1 um |
|
Core concentricity error |
≤ 0.6 um |
|
Primary coating diameter |
250±15 um |
|
Coating-cladding concentricity error |
≤ 12.5 up |
|
Fibre bend radius |
≥4 m |
|
Proof level |
≥1.5 % strain |
|
Fibre type |
9/125 [G657.A2] OS2 |
|
Tensile load |
80 N |
|
Temperature |
-10 °C to 70 °C |
TRANSMISSION CHARACTERISTICS
| Characteristics | Condition | Value |
|
Attenuation |
@ 1310 nm |
≤ 0.40 db/km |
|
@ 1550 nm |
≤ 0.30 db/km |
|
|
Macro bending loss |
Ø 30 nm@10 turns at 1550 nm |
≤ 0.50 db |
|
Chromatic dispersion |
@ 1310 nm |
≤ 3.5 ps/nm.km |
|
@ 1550 nm |
≤ 18 ps/nm.km |
|
|
Cut-off wavelength |
≤ 1260 nm |
|
|
Zero dispersion slope |
≤ 0.092 ps/nm2 .km |
|
|
Zero dispersion wavelength |
1300-1324 nm |
Ordering Information
| Part Number | Description |
|
3182-U00017A2CL |
1 Core SM G.657A2 Self Supporting Fibre Optic Drop Cable LSZH |
CL: BK(Black), OR(Orange), YL(Yellow), GN(Green), AQ(Aqua), RD(Red), BL(Blue)
