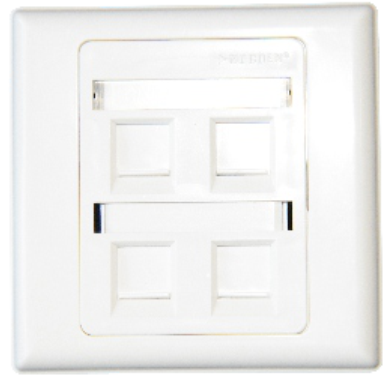

UK Face Plate
UK Face Plate
Norden offers a variety of face plates to provide the basis for a wide range of possible information outlet combinations. Norden face plates accept any combination of Norden’s keystone Jacks. These are available in shuttered and blank (modular) forms with UK or Euro styles. The module features a designated area...
Overview Specifications Ordering Information
Overview
Norden offers a variety of face plates to provide the basis for a wide range of possible information outlet combinations. Norden face plates accept any combination of Norden’s keystone Jacks. These are available in shuttered and blank (modular) forms with UK or Euro styles. The module features a designated area...Specifications
FEATURES
Flat styles
Comes with fixing screws
Conforms to ANSI/TIA/EIA 568A-B.2.2001 standards
Designated label area
Spring loaded shuttered Port for Protection
DESIGN & MATERIALS
|
Material |
High Impact Thermoplastic (ABS) UL94V-0 fire retardant |
|
Face Plate Type |
Single Gang Euro or UK style |
|
Angle |
45° |
|
Operating Temperature |
-10°C to +60°C |
|
Colour |
White or other as per request |
DIMENSION CHARACTERISTICS
| Product Type | Dimension | No. of ports |
|
Face Plate (UK Style) |
86x86 mm |
1,2 & 4 Ports |
|
Face Plate (Euro Style) |
80x80 mm |
1 or 2 Ports |
Ordering Information
| Part Number | Description |
|
124-16101X |
UK Face Plate Plain 01 Port |
|
124-16102X |
UK Face Plate Plain 02 Port |
|
124-16104X |
UK Face Plate Plain 04 Port |
X:BK(Black), BL(Blue), GN(Green), GY(Gray), RD(Red), WH(White), YL(Yellow)
